Class II FR6 FR14 FR16 Disposal Closed Suction Catheter

Product Details:
Place of Origin: Zhongshan,Guangdong
Brand Name: Lycome
Certification: CE
Model Number: LC-ST020
Payment & Shipping Terms:
Minimum Order Quantity: 5 carton
Price: Negotiate
Packaging Details: 5PCS /BOX,10BOXES/CARTON
Supply Ability: 200000 pcs per day

Detail Information

Material: PC,PVC,Medical Silicone Packing: 1 Pcs / Bag
Color Code: Orange,white,red,blue,green For Choose Instrument Classification: Class II
Product Name: Closed Suction System Type: Closed Suction Catheter
Size: FR 6 ~ FR 16 Certificate: ISO Certificates
Others: 72 H & 24 H Use
High Light:

FR14 Closed Suction Catheter

,

Disposal Closed Suction Catheter

,

FR16 Closed Suction Tube

Product Description

Medical disposal Closed Suction Catheter 5 FR,6 FR,14 FR,16 FR



Description:



Lycome Closed Suction system is an advanced Closed Suction System.
It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.
Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.
Automatic Flushing Closed Suction System is the only catheter that retracts within a unique and isolated turbulent cleaning
chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared to a standard closed suction system. This reduced colonization may help reduce the risk of VAE and VAP in your ventilated patients.
A turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter.
Hinged valve isolates catheter tip and helps prevent inadvertent lavage.
Integrated MDI port (optional)

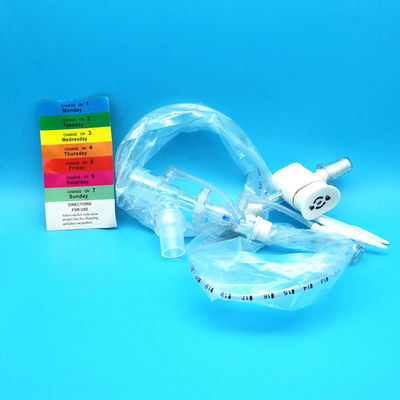

The catheter is enclosed in a plastic sleeve. It attaches between the breathing circuit and the tracheostomy tube. Suctioning can be performed quickly and safely if all instructions are followed.

The utility model is suitable for patients with respiratory diseases, general anesthesia operation, emergency treatment, etc. the utility model needs to be used for tracheal intubation (or tracheotomy intubation).



Applications:



1) Effectively clean oral sputum and secretions without going offline, greatly avoiding and reducing lung infections.

2) Sustainable humidification of airways

3) Improve the effectiveness of sputum suction



Competitive Advantage:



Simple operation, no need to go offline

Effectively avoid cross infection

Prevent sputum splash

Sustainable humidification of airways

Improve the effectiveness of sputum suction

Reduce occupational exposure of nurses



Specifications:

French Size

(Fr)

O.D.

(MM)

Catheter length

(MM)

Reference ET size

(MM)

Color code
5 1.7 300   Grey
6 2 300 2.5/3.0/3.5mm Light green
8 2.67 300 4.0/4.5/5.0mm Light blue
10 3.33 600 5.0/5.5/6.0/6.5mm Black
12 4 600 7.0/7.5/8.0mm White
14 4.67 600 8.0/8.5/9.0mm Green
16 5.33 600   Orange





Feature:

1) The smart design of the closed suction catheters allows the patients' breath-mechanical ventilation and suctioning simutaneously.

2) Prevent cross infection. The closed suction systems are designed with protective sleeve to isolate the germs inside the patients and avoid cross infection to caregivers.

3) Soft and smooth blue suction tip. This design reduces damage to mucous membranes.

4) Double swivel connectors reduce strain on ventilator tubing.

5) Easy operation in suction process by being equipped with a wedge to disconnect and clip functions.

6) For tracheostomy tubes. The suction catheters match tracheostomy tubes, different tube length available. The catheters are marked with accurate depth to understand the proper catheter insertion in the trachea.

The closed suction catheter system is an advanced design, it allows patients comfort of suctioning without stopping the air ventilation. The PU protective sleeve can protect the caregivers from infection.

Class II FR6 FR14 FR16 Disposal Closed Suction Catheter 0



Direction For Use

Set up Procedure

1. Inspect the product before use. Do not use if package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal tube/Tracheostomy tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to colour ring.
6. Before suctioning commences ensure that the cap of the irrigation /flushing port is closed.
7. Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.



Suctioning Procedure

CAUTION-ALWAYS USE THE RECOMMENDED VACUUM LEVELS. CONSIDER LENGTH OF SUCTIONING TIME.

1. Grip the three way adaptor in one hand and with the other hand feed the suction catheter into the Endotracheal tube/Tracheostomy tube, to the required depth. Depth markers can be visible through the protective cover for your guidance.
2. Once the suction catheter is in the desired position/depth depress the vacuum control valve to apply suction.
3. Remove suction catheter until the protective sleeve is straight.
4. Repeat steps 1-3 as necessary.
